Description

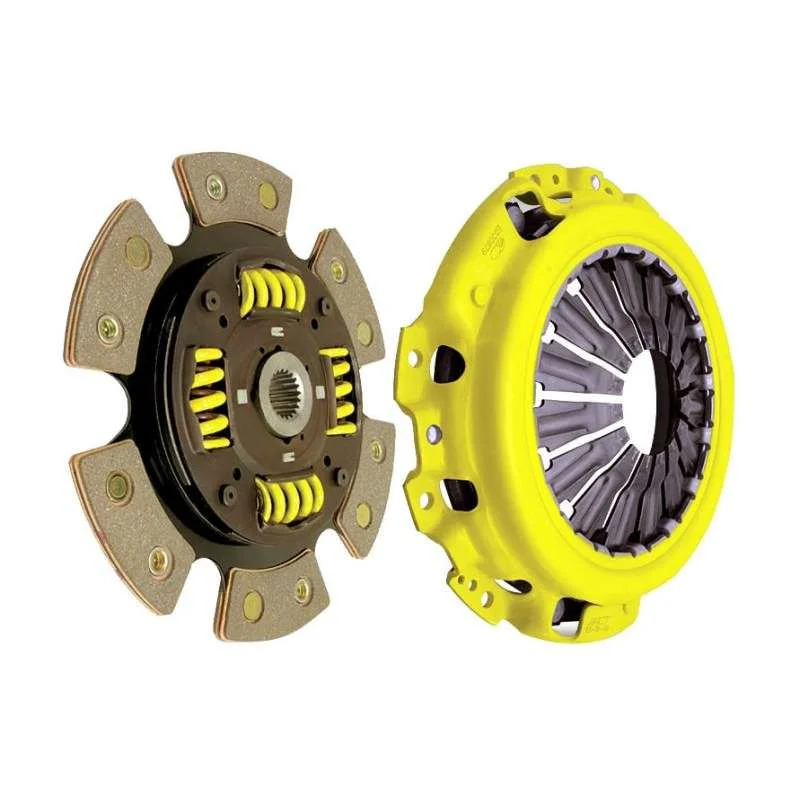

ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT’s 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.
Feel:A low to moderate pedal feel; aggressive engagement with stock to low to moderate gear rattle.
Life: Longer clutch life achieved through ACT’s exclusive diaphragm design.
Quality: Premium ceramic friction materials provide low wear rates and high heat tolerance.
Recommended Use: Recommended for race use only.
ACT Difference: All ACT pressure plates are dynamically computer balanced for smooth operation at high RPM.
Specifications:
– Torque Capacity (ft/lbs.): 435
– Torque Capacity Over OE: 52%
– Spline Counter: 24
– Spline Size (in.): 1
– Disc Diameter (in.): 9.8
– Product Weight: (lbs.): 17.6
Parts Included:
– 6250306 – Perf Street Sprung Disc
– N024 – Heavy Duty Pressure Plate
– PB1012 – Pilot Bearing
– AT01 – Alignment Tool
Installation Instructions (PDF)
