Description
Ford
3Dr RS Cosworth inc. RS500 (1986-1988)

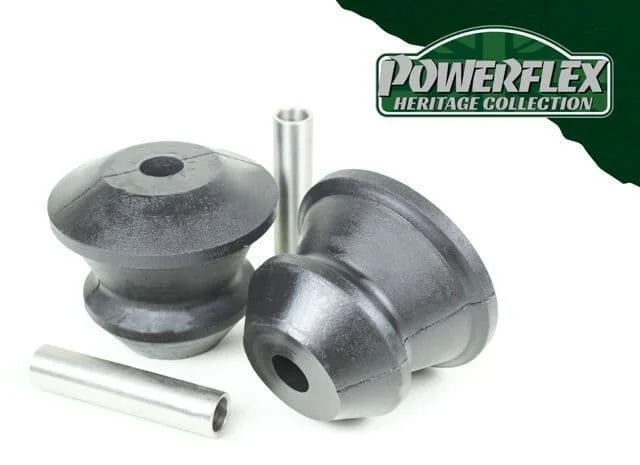

Powerflex Poly Heritage Rear Beam Mounting Bush
PFR19-107H
POWERFLEX Heritage Series bushes are manufactured using modern day materials with properties biased for the road. These dark grey coloured bushes will improve any collectors car, whilst retaining the same standard appearance of a rubber bush.
Diagram Position: 4
Number of Bushes Supplied: 2
OEM Number: 6141919
Warranty: Lifetime
Range: Heritage Series (Classic Grey)
Fitting Instructions:
1. Remove the original rubber bush from the rear beam.
2. Clean any dirt and corrosion from the bore of the beam and file off any sharp edges.
3. Push the polyurethane part into the beam from underneath with the small diameter first, as shown in figure 1. There is likely to be a pop noise as the polyurethane part is pushed through to the top of the beam. TIP: Apply some washing-up liquid to the polyurethane part to aid in fitting.
4. Apply some of the supplied grease to the bore of the polyurethane part, and insert the stainless steel sleeve until it sits flush within the bush.
5. Tension all hardware to manufacturers recommended torque settings
(heritage-series)
