Description
The LC-2 utilizes the only 100% digital wideband air/fuel ratio technology on the market! The LC-2’s patented award-winning DirectDigital™ signal processing technology provides data on exactly how rich or lean an engine is running at any load. The LC-2’s self-calibrating circuitry also compensates for changes in temperature, altitude, and sensor condition. The LC-2 includes a digital input/output, 2 full-programmable analog outputs, and is ideal for applications such as dynamometers, data acquisition systems, standalone ECUs, and gauges. The LC-2 can also be “daisy-chained” for cost-effective individual cylinder monitoring, and is fully compatible with our Modular Tuning System (MTS).
Key Features:
– Patented DirectDigital™ Wideband Technology
– Wideband O² Compatible with ALL fuel types
– Ability to calibrate O² sensor for maximum accuracy
– Integrated dual-color status LED (Green/Red)
– Two configurable linear 0-5v analog outputs
– Optional sensor cable lengths available: 3ft, 8ft (Included), and 18ft
– Positive lock connectors for all connections
– Innovate MTS serial in/out
– Serial connection to your PC
– Real-time display data on screen and/or with powerful LogWorks software
*Two fully programmable linear analog outputs to connect to analog gauges, dyno computers, ECUs, piggyback controllers, and other devices with analog inputs. Analog Output #1 (Yellow) is configured as 0 volt = 7.35 AFR and 5 volts = 22.39 AFR; Analog Output #2 (Brown) 1.1 volt = 14 AFR and .1 volt = 15 AFR. With the provided LM Programmer software these analog outputs may also be configured by the user.
Click here to view the complete user guide and installation manual.

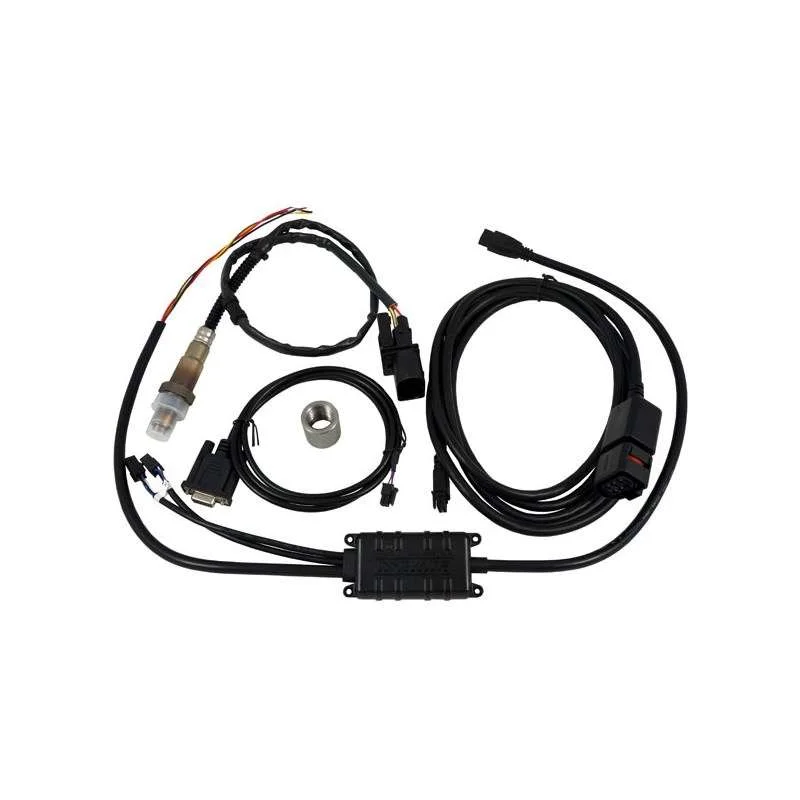

Kit Includes:
– LC-2 Controller
– Bosch Wideband O² Sensor
– 3 ft. Sensor Cable (Overall length 5 ft.)
– 1″ Mild-Steel Exhaust Bung
– Program Cable
– Manual
*Program Cable (Only needed for Datalogging and to change the Fuel Type Setting), Manual, LogWorks Software (Free Download).
