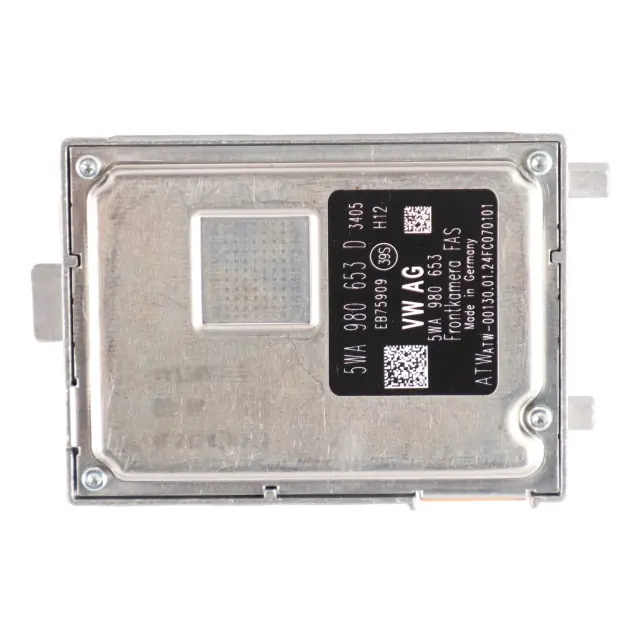

Volkswagen Golf CD1 Camera Lane Assist Control ECU Module Unit 5WA980653D

Description

Volkswagen Golf CD1 Camera Lane Assist Control ECU Module Unit is an advanced component from the Electronic control modules and controllers group, responsible for the operation of the lane assist system in the front zone of the vehicle. The module, integrated with the camera, works with the vehicle’s electronics, supporting the driver in maintaining the lane and improving safety during daily operation.

Specifications and technical data

• SKU: 5WA980653D
• Mark: Volkswagen
• Condition: Used
• OEM Part Number: 5WA980653D
• Substitutable numbers: 5WA980653D, 5WA 980 653 D
• Location on the vehicle: Front
• Category: ECUs & Computer Modules

Function and application in the lane assist system

The presented controller with a camera operates in the front part of the vehicle, analyzing the road image and transmitting data to driver assistance systems. Based on information from the camera, the system can recognize lane markings and then transmit signals to other modules responsible for the vehicle’s response. This type of solution is particularly useful during highway driving and on longer routes, where stable lane keeping affects comfort and safety.

The element is intended for Volkswagen vehicles that use the CD1 architecture and a factory-fitted lane assist system. Thanks to the integration of the camera with the control electronics, the number of separate components is reduced, which simplifies diagnostics and service.

Benefits of using an original ECU module with a camera

Using an original electronic control module with a camera allows for maintaining software and communication consistency within the vehicle’s network. This is especially important in modern installations where many safety systems share data (e.g., electronic stability control, power steering, or adaptive comfort functions). A properly selected module:

• supports the correct operation of the lane assist system without the need for additional installation modifications,
• facilitates configuration and coding during adaptation in the vehicle,
• reduces the risk of communication errors in the data bus.

For workshops and services specializing in automotive electronics, this is a solution that allows for efficient repair of driver assistance systems without interfering with the construction of harnesses or mounts in the front part of the body.

Mounting characteristics and vehicle integration

The placement of the module in the front zone of the vehicle promotes precise reading of the road situation, while simultaneously requiring correct positioning and calibration after installation. In practice, this means it is necessary to maintain the correct position of the camera relative to the windshield and the vehicle’s axis so that the system can correctly interpret horizontal markings and lane geometry.

When replacing the element, it is worth paying attention to:

• the condition of the mounts and brackets in the front part of the body,
• the cleanliness of the working surface in front of the camera,
• correct connection of electrical connectors and the subsequent calibration procedure in a diagnostic tester.

Such prepared installation allows for restoring the full functionality of the lane assist system without the need for additional structural modifications.

Condition of the element and application in electronics service

The offered module with a camera is a used item, which makes it an attractive solution for workshops and users looking for an economical alternative to new components. With proper vehicle diagnostics and the selection of a compatible controller, one can effectively remove faults related to the incorrect operation of the lane assist system, avoiding the costly replacement of the entire package of assistance systems.

In practice, these types of components are eagerly used in professional services dealing with the repair of onboard electronics, where both operational efficiency and the ability to integrate with the existing vehicle configuration count.
