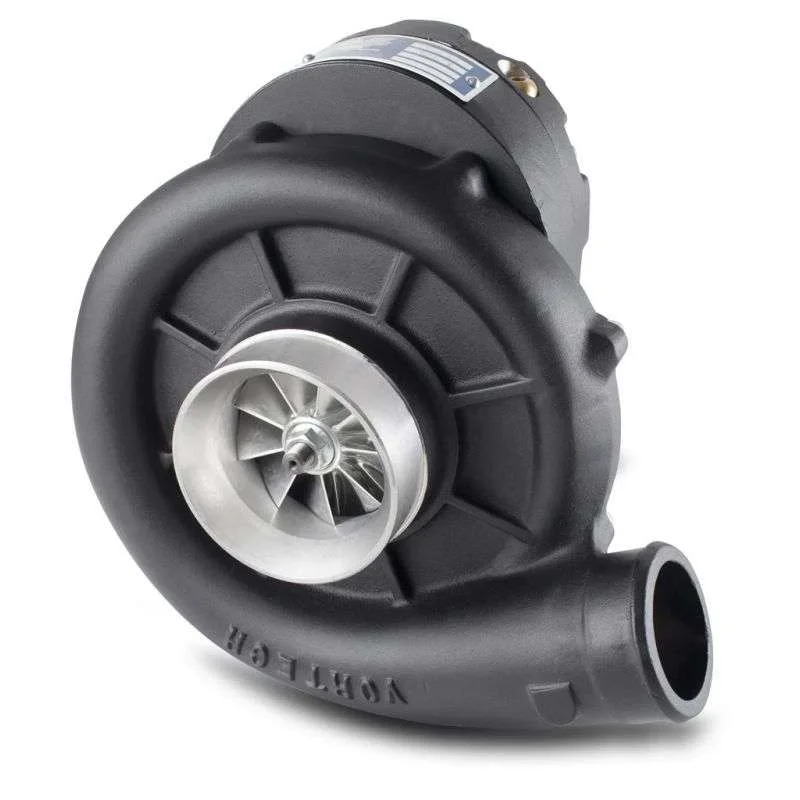

Vortech V-3 H67B Supercharger

Description

• The V-3 features an internal oil reservoir. No connection between the oil pan and the compressor gear case is required. Includes a remote fluid drain hose (attached to supercharger) that allows for simple fluid changes without removing the supercharger from the vehicle.
• Technologically advanced, high-efficiency, 5-Axis machined billet impeller and high-diffusion housing developed in our SAE-J1723-compliant supercharger test cell.

• Performance Specs

  Internal Step-Up Ratio: 3.61:1

  Max Speed: 52,000 RPM

  Max Boost: 14 PSI

  Max Flow: 750 CFM

  Max Power: 525 HP

  Peak Efficiency: 71%

  Dimensions

  Discharge OD: 2.50″

  Inlet OD: 3.50″

  Inducer Diameter: 2.69″
