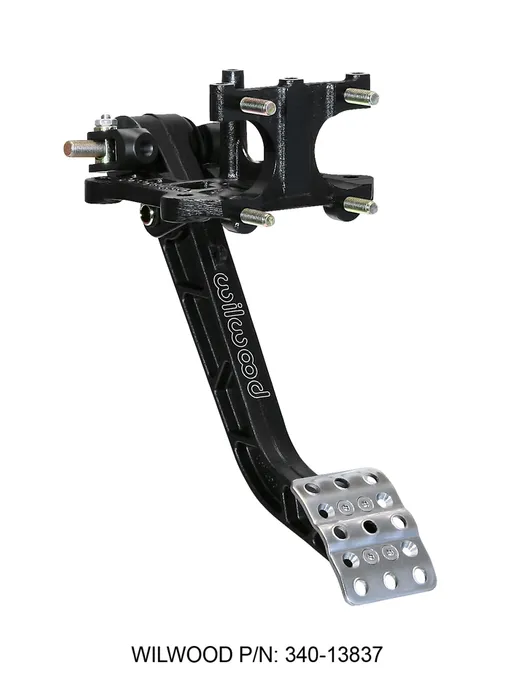

Wilwood Reverse Mount Brake Pedal 5.1:1

Description

This swinging mount pedal assembly mounts two single outlet brake mastercylinders in a reverse position inside the firewall.
It features a lightweight aluminum frame, with a high strengthreinforced I-Beam style forged 5.1:1 ratio pedal arm.
The non-skid waffled pedal pad can be laterally adjusted for driverpreference or clearance as necessary.
The balance bar incorporates a positive detent stop every full turn tomaintain adjustment position and driver awareness.
A pin and clevis pushrod attachment system provides highest possibledegree of misalignment angle for bind free operation through the entirerange of travel.
The balance bar can be locked in place with the included jam nut, orused with an optional remote cable for quick on-track adjustments.
This pedal accepts any Wilwood vertical mount flange single outletmaster cylinders that are ordered separately by style and bore size.
